Healthy Cows Need Fresh Air
Right Where They Live

Healthy cows need fresh, cool air. VES designs ventilation systems around the needs of the cow, not the building. Our direct drive fans pull fresh air into the structure, direct the air in waves to cow level, and remove the dirty, heated air. Fresh air keeps your cows’ body temperatures down, keeps bedding dry, helps prevent diseases from pneumonia to mastitis, and deters pests without chemicals. You’ll get more milk, more consistent reproduction, and lower health costs.

ECV (Effective Cowside Velocity) FAN SYSTEM

FEATURES

  • 72˝ 3PH Motor is 3 HP or 2.2KW on high and .3KW on low 230/460 VAC, Amps 8.2/4.1

  • On low speed you get an incredible 80 CFM per watt

  • Corrosion resistant fiberglass housing.

  • Heavy duty pulley and bearing assembly.

  • Maintenance free motor.

  • Quick change belt.

  • Can be mounted on steel post, building column or suspended from the ceiling (all optional mounts).

  • Optional variable frequency drive.

  • 6 directional air flow deflectors.

  • Balanced heavy duty corrosion resistant 6 paddle aluminium blade.

  • Shipped fully assembled, except for air foil deflectors.

  • Can reduce heating and cooling cost up to 50%.

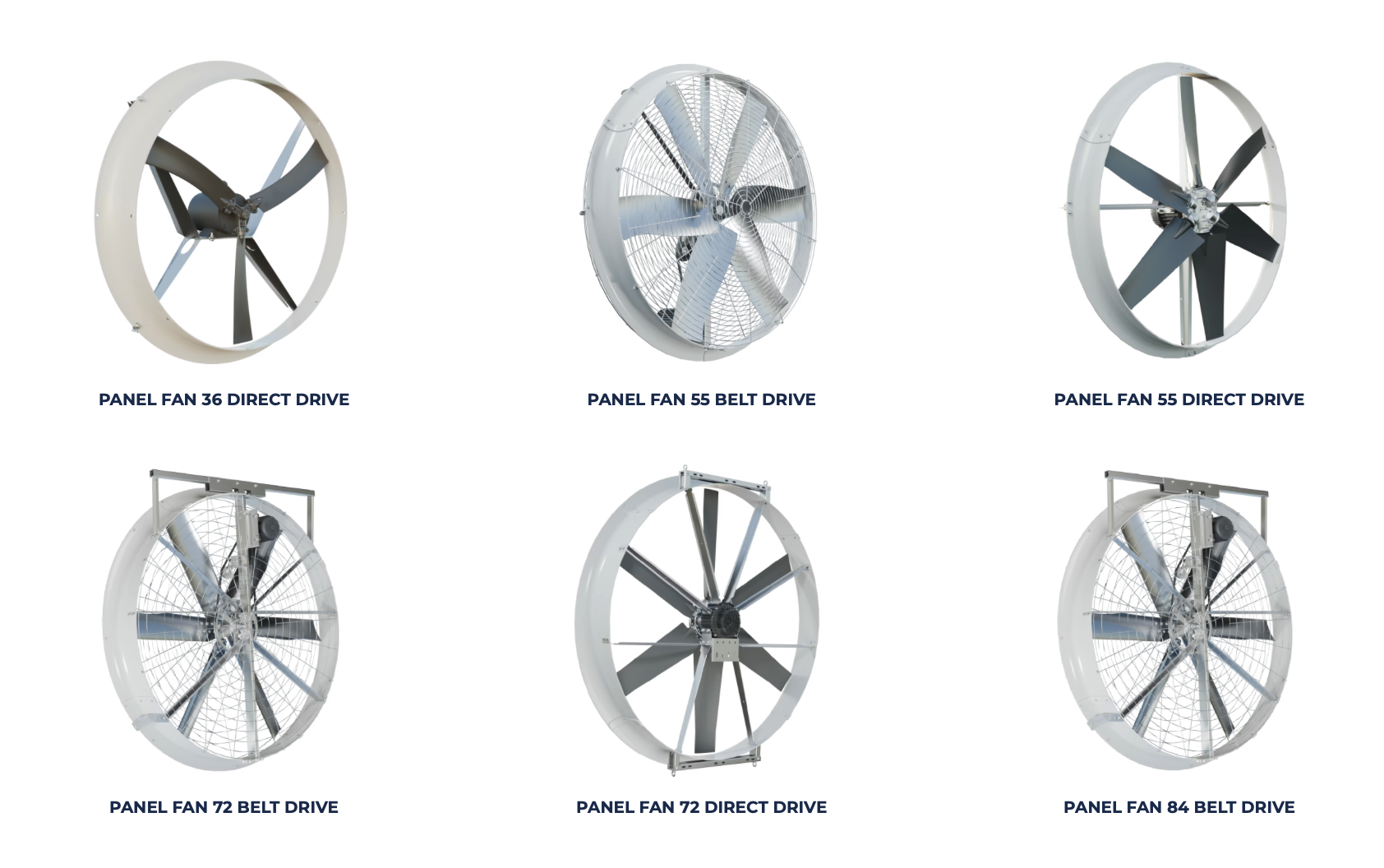

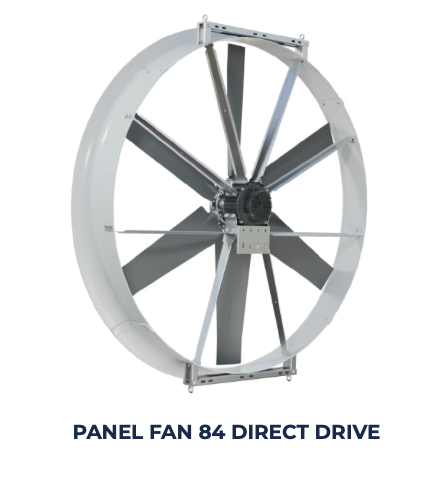

PANEL FAN SYSTEM

FEATURES & BENEFITS

  • 50" Fan BESS LAB Certified Rotors have been balanced to reduce noise vibration and prolong life

  • Capacitor rating 450/vac, 10,000 hours for extended life

  • 50˝ 3 PH Motor is 1.5 HP

  • High velocity air pattern transfers the electrical energy from the motor into a concentrated powerful air stream. Creating optimum cow cooling, insect control, drying of the bedding under the cow and improved employee comfort.

  • Cooler cows have better feed and water to milk conversions, along with a higher fertility rate during hot summer days. Although some heat stressed cows never recover their potential for milk production

  • Exchanges air in open and curtain sided buildings.

  • Reduced energy cost when compared to low efficiency panel and basket fans.

  • Quiet operation.

  • Balanced Cast Aluminum blades strong enough to stand up to flying barn birds. Also available in balanced galvanized blades.

  • Energy efficient and maintenance free 1 HP motor available in single and three phase dual voltage.

  • 3 year motor warranty

  • Deep drawn heavy gauge venture panel.

  • Balanced pulley and belt combination.

  • Automatic belt tensioner.

  • Optional wall mount allows the fan to pivot horizontally and vertically.
